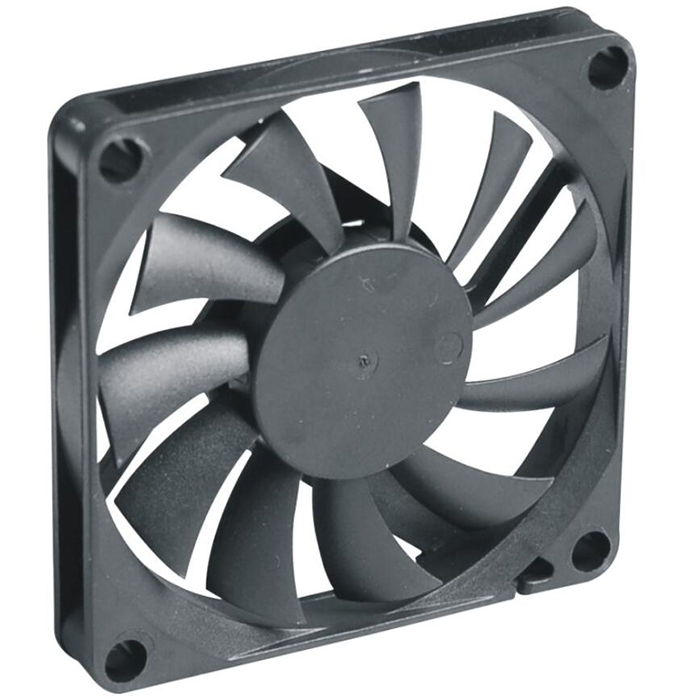

    SF8010
    SF8010
    Category：DC FAN

    Brief description

    Model: SF8010
    Size: 80x80x10mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 50g

  • Brief description
  • Model: SF8010
    Size: 80x80x10mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 50g
    • Size: 80x80x10mm



      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF8010B(S)-12L

      √

      √

      12

      0.12

      2500

      21.73

      36.94

      12.65

      27

      SF8010B(S)-12M

      √

      √

      0.18

      3000

      26.53

      45.10

      17.74

      30

      SF8010B(S)-12H

      √

      √

      0.24

      3500

      30.25

      51.43

      22.64

      34

      SF8010B(S)-24L

      √

      √

      24

      0.08

      2500

      21.73

      36.94

      12.65

      27

      SF8010B(S)-24M

      √

      √

      0.11

      3000

      26.53

      45.10

      17.74

      30

      SF8010B(S)-24H

      √

      √

      0.14

      3500

      30.25

      51.43

      22.64

      34



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 50g

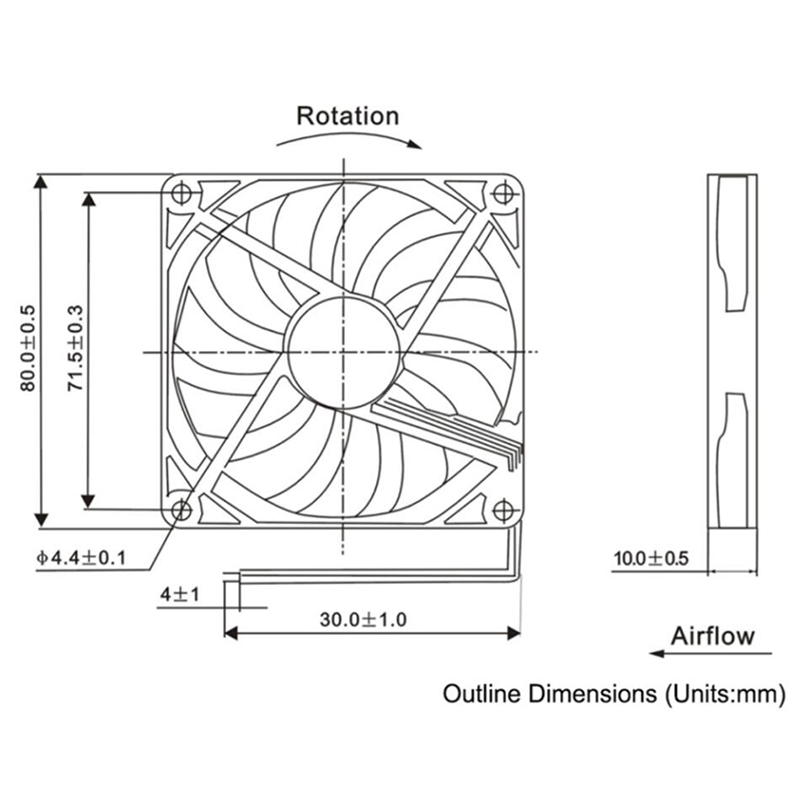

      Dimensions:
