    SF8038
    SF8038
    Category：AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF8038
    Size: 80x80x38mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black

  • Brief description
  • SF8038
    Size: 80x80x38mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black

    • Size: 80x80x38mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF8038HSL-1

      110/120

      50/60

      0.14/0.13

      10/6.8

      2200/2700

      24/29.8

      40.8/55.7

      30/42

      25.5/31.2

      ----

      SF8038HBL-1

      110/120

      50/60

      0.14/0.13

      10/6.8

      2200/2700

      24/29.8

      40.8/55.7

      30/42

      25.5/31.2

      ----

      SF8038MBL-2

      220/240

      50/60

      0.08/0.06

      10/6.8

      2200/2700

      24/29.8

      40.8/55.7

      30/42

      25.5/31.2

      ----

      SF8038MBL-2

      220/240

      50/60

      0.08/0.06

      10/6.8

      2200/2700

      24/29.8

      40.8/55.7

      30/42

      25.5/31.2

      ----

      SF8038MSL

      110/230

      50/60

      0.32/0.16

      28

      2200

      24

      40.8

      30

      25.5

      ----

      SF8038MBL

      110/230

      50/60

      0.32/0.16

      28

      2200

      24

      40.8

      30

      25.5

      ----



      Information:

      Motor: Shaded pole motor structure
      Frame: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Temperature/Humidity Range: -30°C to +60°C, 0%~95%
      Protection: Impedance Protected Withstand
      Voltage: AC1500V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Rotation Direction of Blades: CCW seen from the front impellers
      Unit Weight: 250g

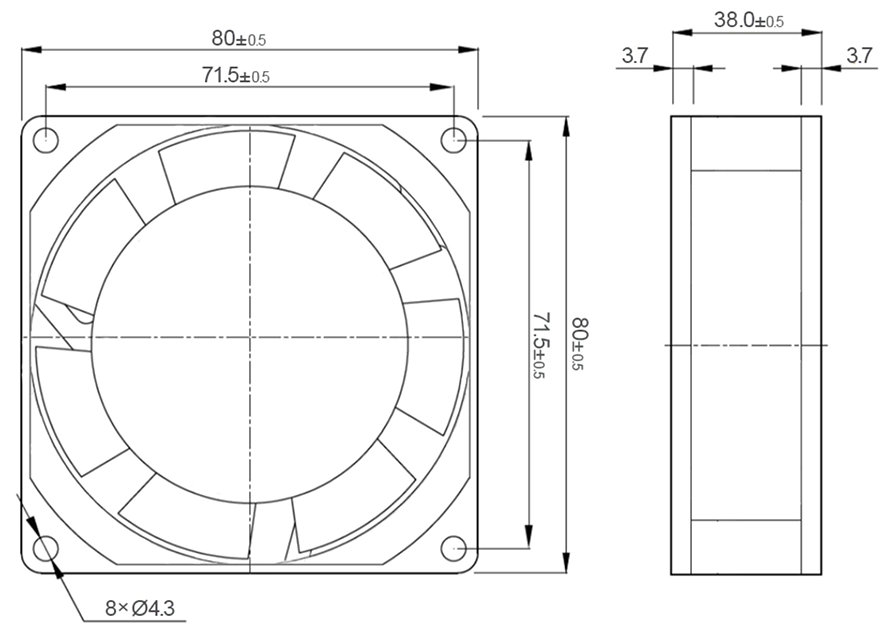

      Dimensions:
