Brief description
Centrifugal Fan
SFC225-2P63
Dia: 225mm
Voltage: 110-120VAC, 220-240VAC, 380VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Number of pole: 2 pole
Outlet height: 63m
Material: plastic blades, copper coil
Color: Black or white

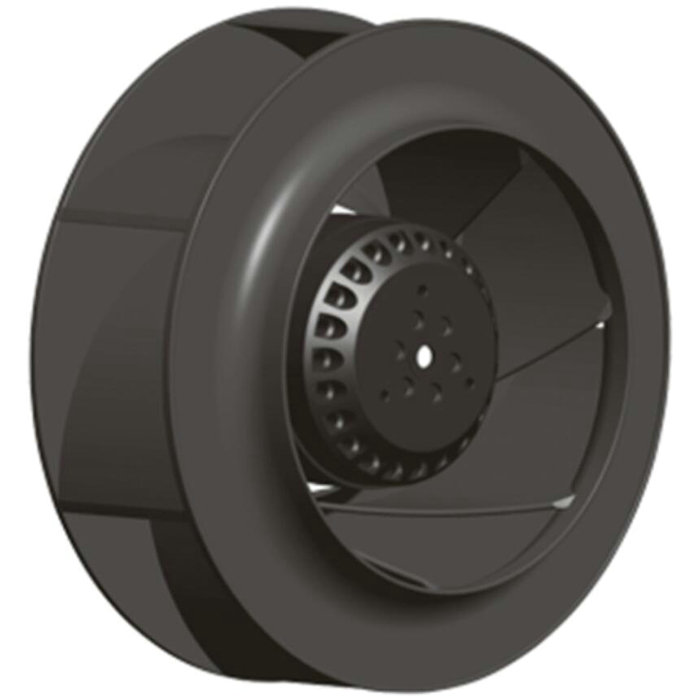

Centrifugal Fan (Dia:225mm)
Parameters:
|
Type |
Rated Voltage |
Frequency |
Current |
Power |
Speed |
Max Air Flow |
Static Pressure |
Noise |
Capacitor | |
|
SFC225-2P63-1 |
115 |
50 |
1.30 |
130 |
2650 |
708 |
1200 |
540 |
68 |
10.0/250 |
|
60 |
1.45 |
170 |
2950 |
790 |
1340 |
730 |
71 | |||
|
SFC225-2P63-2 |
230 |
50 |
0.60 |
131 |
2650 |
708 |
1200 |
540 |
68 |
4.0/450 |
|
60 |
0.74 |
170 |
2950 |
790 |
1340 |
730 |
71 | |||
|
SFC225-2P63-3 |
380 |
50 |
0.34 |
131 |
2650 |
708 |
1200 |
540 |
68 |
2.0/630 |
|
60 |
0.45 |
170 |
2950 |
790 |
1340 |
730 |
71 | |||
Information:
Motor：Cage type capacitor structure external rotor motor
Impeller：Black PA nylon one-time injection moulding
Operation Temperature/Humidity Range: -30℃~+65℃ 0%~95%
Protection：Motor Internal with automatic recovery thermal protector
Withstand Voltage：AC 1800V, 1 min at 0.5mA, 50/60Hz
Insulation Grade：Design according to IEC61858 Grade
Protection Grade：IP44
Unit Weight: 2.7Kg

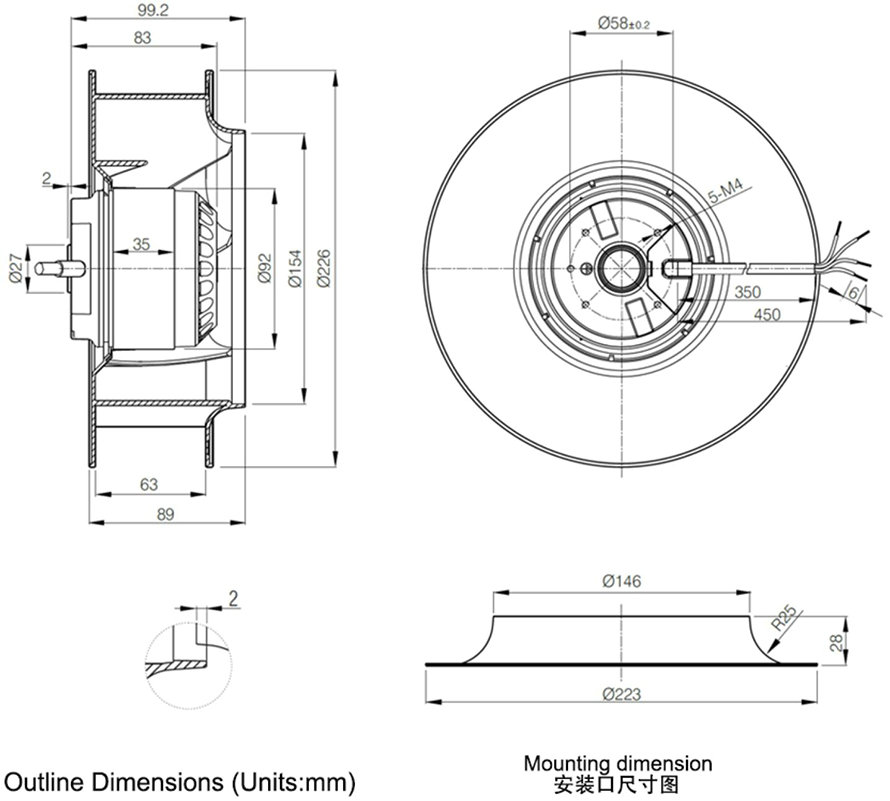

Dimensions:
