Brief description

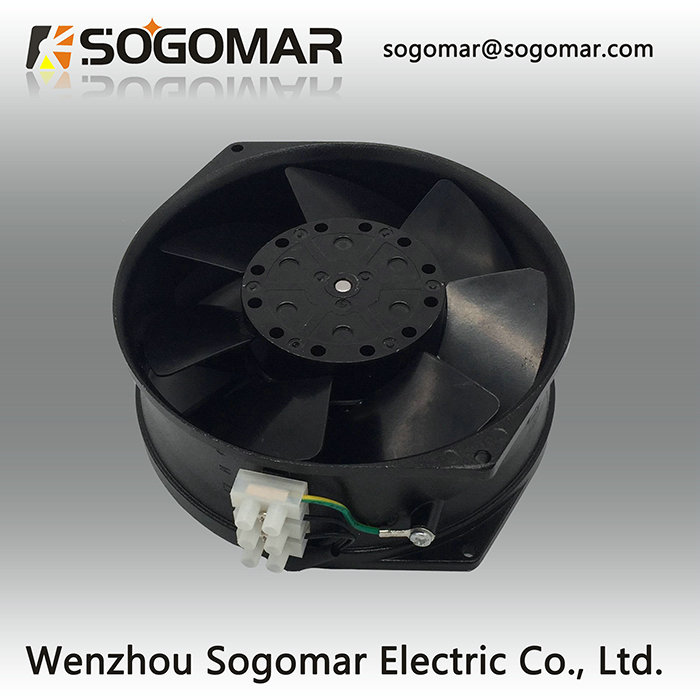

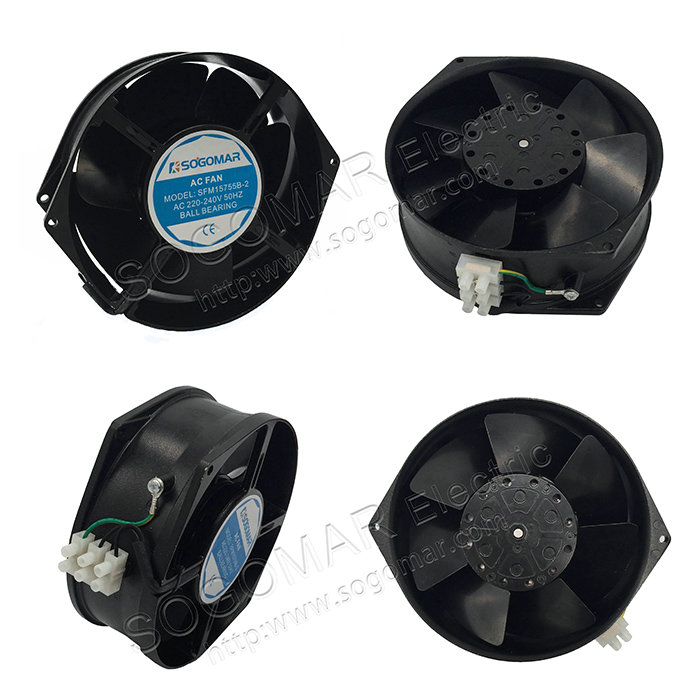

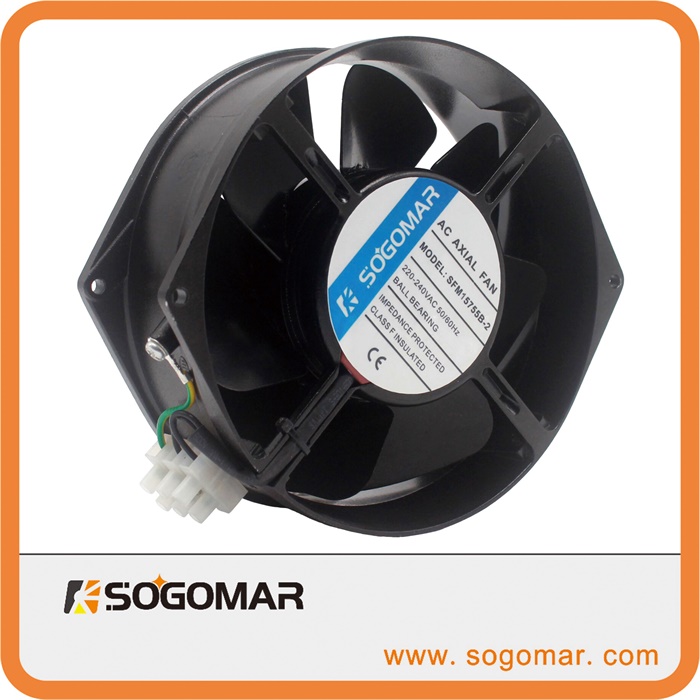

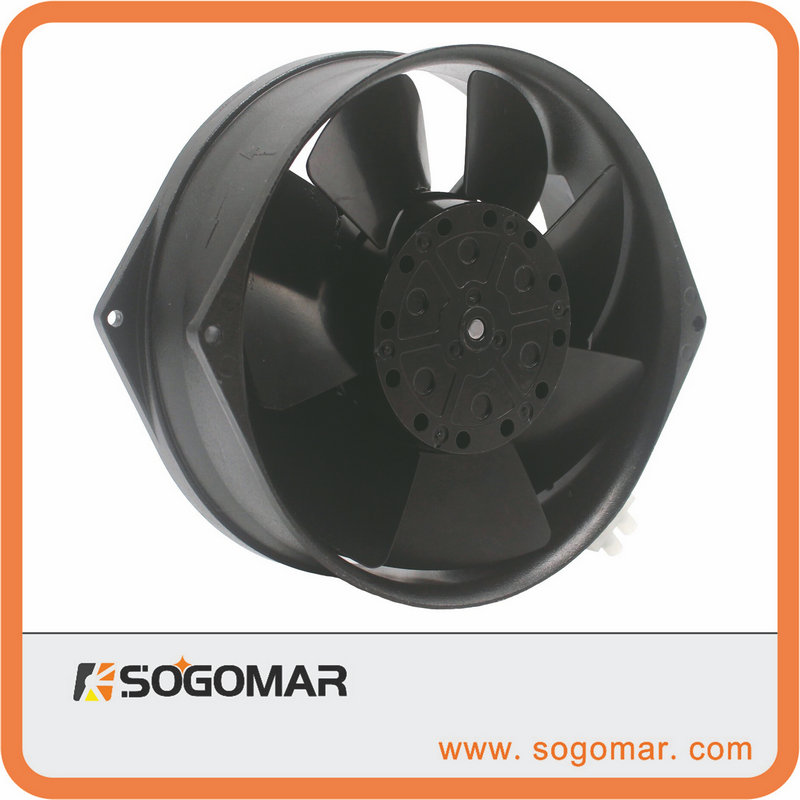

SFM15755
Size: 172x150x55mm
Voltage: 110-120VAC, 220-240VAC, 380VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Bearing: Ball bearing
Connection: leadwire or terminals
Material: Alu frame, steel blades, copper coil.
Color: Black or Silver
Package: 40.5*36.5*40cm,20PCS/Carton,24kgs
SFM15755
Parameters:
|
Type |
Rated Voltage |
Frequency |
Current |
Power |
Speed |
Max Air Flow |
Static Pressure |
Noise |
Capacitor | |
|
SFM15755B-1 |
115 |
50 |
0.52 |
37 |
2650 |
189 |
320 |
80 |
49 |
---- |
|
60 |
0.43 |
34 |
3000 |
224 |
380 |
120 |
53 | |||
|
SFM15755B-2 |
230 |
50 |
0.35 |
37 |
2650 |
189 |
320 |
80 |
49 |
---- |
|
60 |
0.20 |
33 |
3000 |
224 |
380 |
120 |
53 | |||
|
SFM15755B-3 |
380 |
50 |
0.15 |
39 |
2650 |
189 |
320 |
80 |
49 |
---- |
|
60 |
0.12 |
34 |
3000 |
224 |
380 |
120 |
53 | |||
Information:
Motor: External rotor motor structure. Impedance protect
Frame: Aluminium die-casting, surfaces is finished by anti-corrosion treatment with primary color or black electrophoresis anti-corrosion treatment
Impeller: Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity Range: Temperature -30ºC ~ +90ºC Humidity 0% ~ 95%
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
insulting system: Design according to IEC61858 Grade F
Protecting Grade: IP44
Rotation Direction of Blades: CCW seen from the front impellers
Unit Weight: 1.1kg

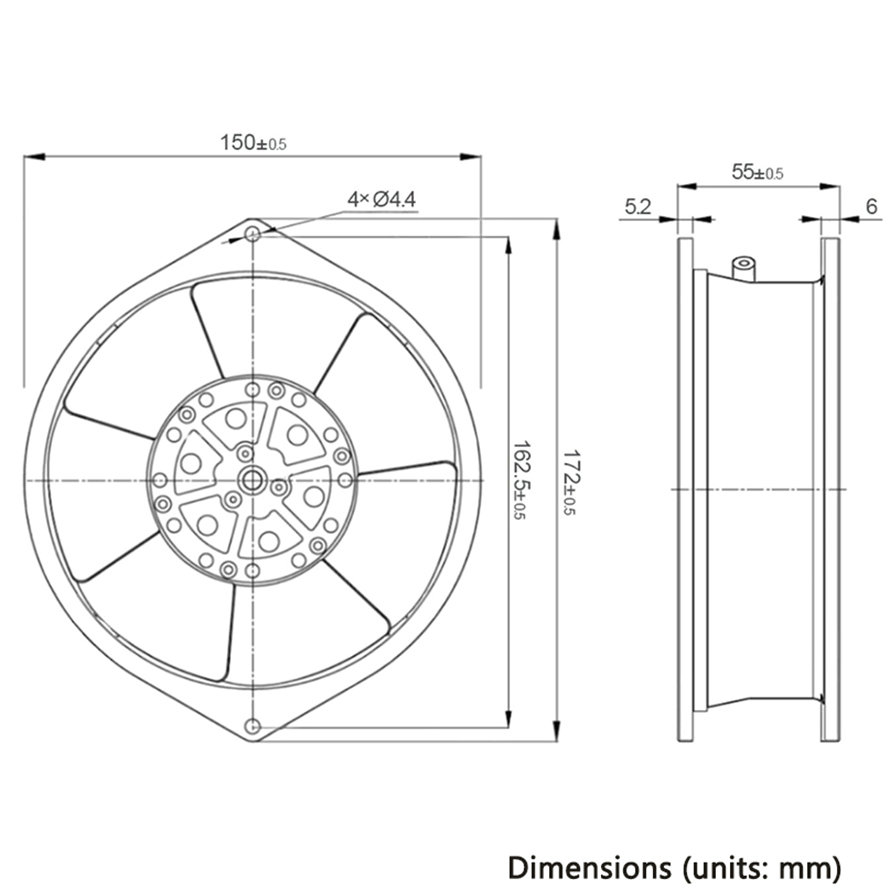

Dimensions:
