    SFM200
    SFM200
    Category:AC FAN - METAL IMPELLERS

    Brief description

    Model NO.: SFM200
    Blade Material: Stainless Steel
    Electric Current Type: AC
    Certification: CE
    Bearing: Ball Bearing
    Usage: for Refrigerate, for Air Conditioner, for Manufacture
    Material: Aluminum Fan
    Type: Axial Fan
    Mounting: Wall Fan
    Warantee: One Year Guarantee Time
    Package: 2PC/CTN with Foam Inside, Then Pallet Package
    Weight(Kg): 1.7
    Specification: diameter 200mm

  • Brief description
  • Model NO.: SFM200
    Blade Material: Stainless Steel
    Electric Current Type: AC
    Certification: CE
    Bearing: Ball Bearing
    Usage: for Refrigerate, for Air Conditioner, for Manufacture
    Material: Aluminum Fan
    Type: Axial Fan
    Mounting: Wall Fan
    Warantee: One Year Guarantee Time
    Package: 2PC/CTN with Foam Inside, Then Pallet Package
    Weight(Kg): 1.7
    Specification: diameter 200mm

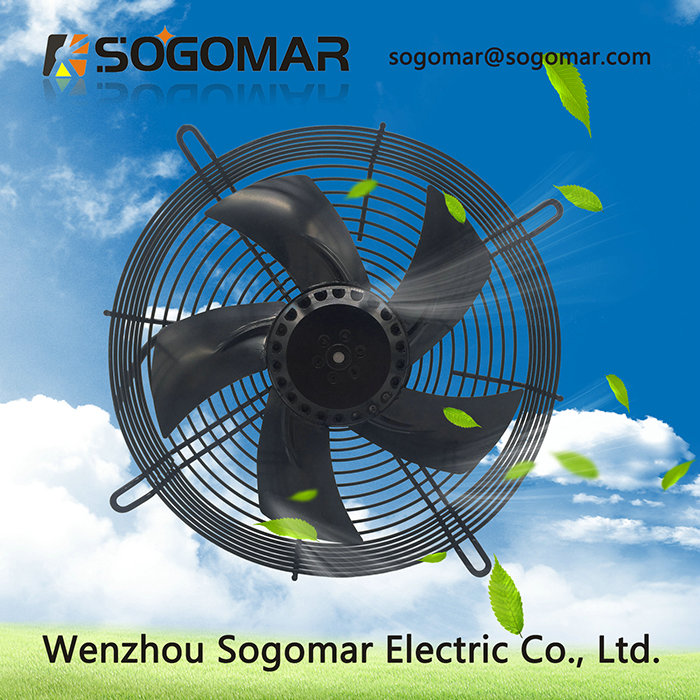

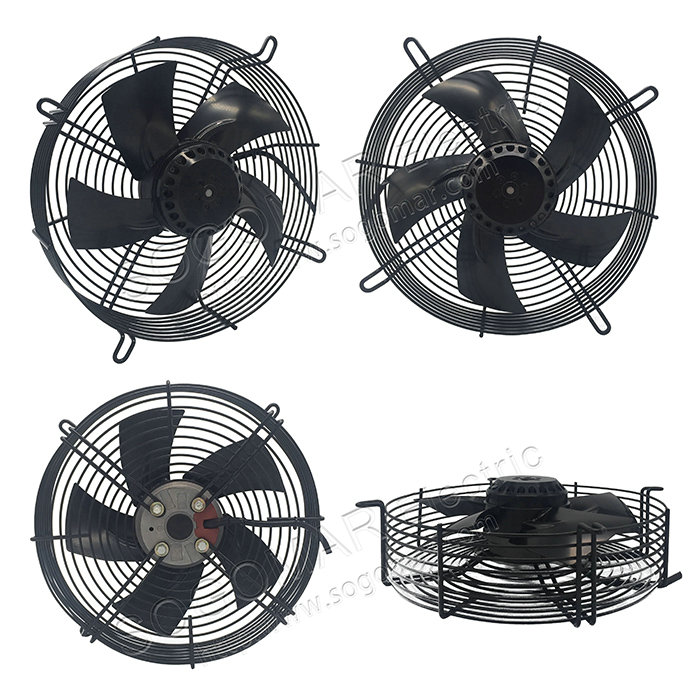

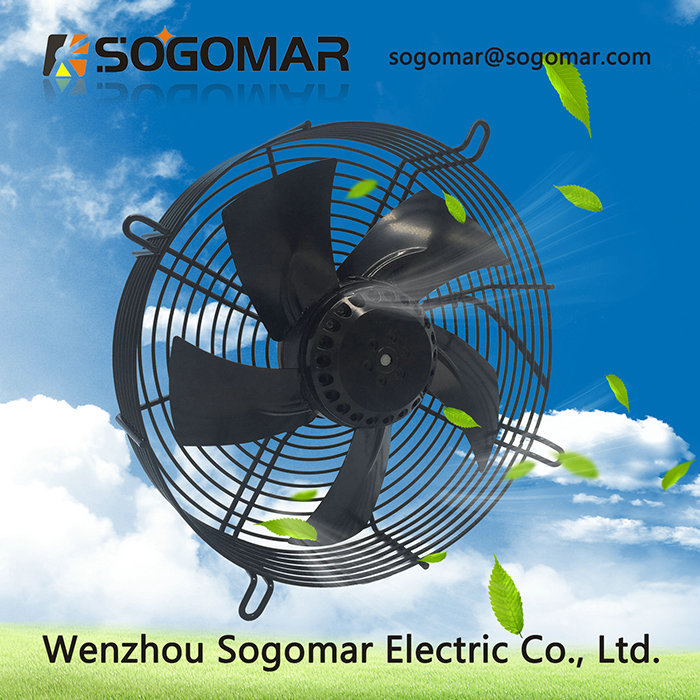

    • Ventilation Fan with External Rotor Motor, Metal Blades (Dia 200mm)

      Parameters:

      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM       m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SFM200-2P-1

      115

      50

      0.61

      61

      2560

      526

      894

      135

      62

      60

      0.64

      71

      2780

      585

      995

      135

      65

      SFM200-2P-2

      230

      50

      0.28

      64

      2560

      526

      894

      135

      62

      60

      0.32

      74

      2780

      585

      995

      135

      65

      SFM200-2P-3

      380

      50

      0.16

      60

      2560

      526

      894

      135

      62

      60

      0.18

      70

      2780

      585

      995

      135

      65

      SFM200-4P-1

      115

      50

      0.27

      31

      1360

      283

      481

      53

      40

      60

      0.27

      32

      1550

      315

      535

      53

      43





      Information:

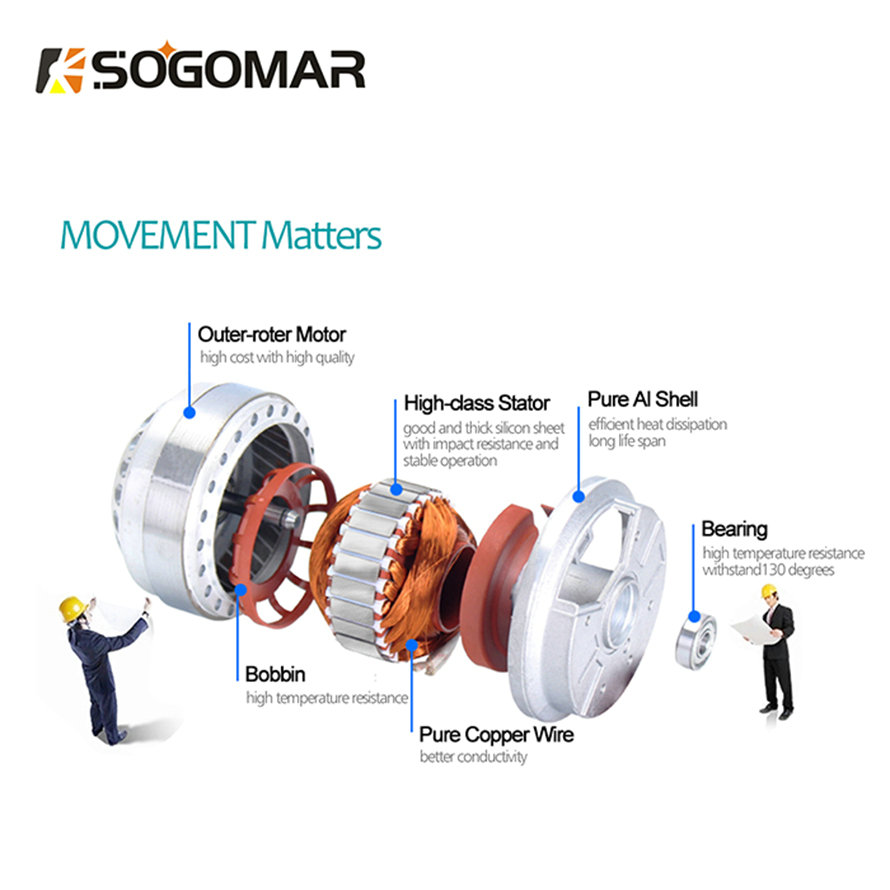

      Motor: Configuration of External rotor motors
      Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
      Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
      Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
      Protection: Motor Internal with automatic recovery thermal protector
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade F
      Protecting Grade: IP54
      Unit Weight: 1.7kgs

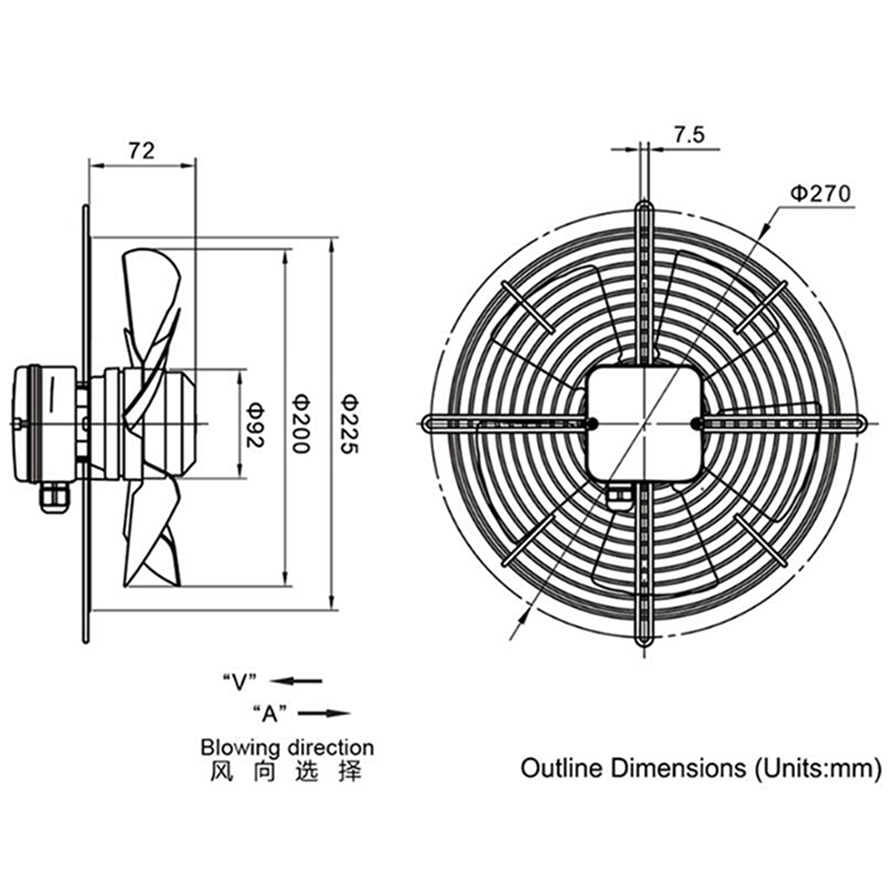

      Dimensions:
