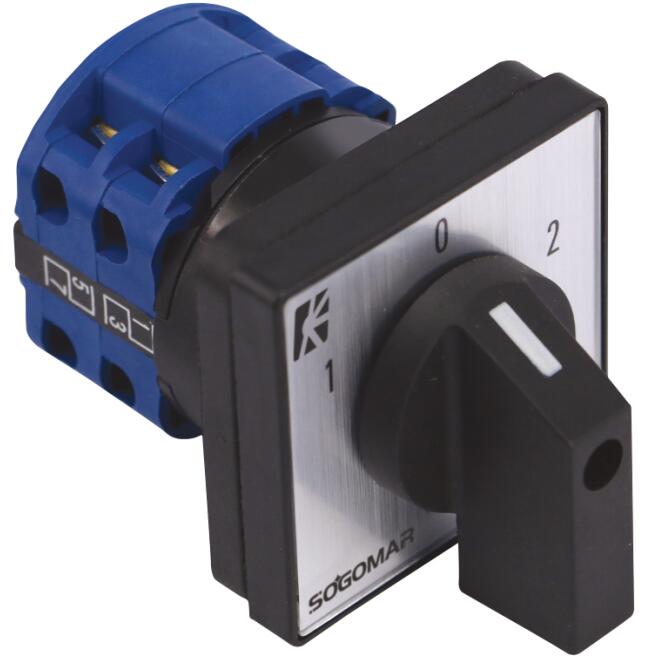

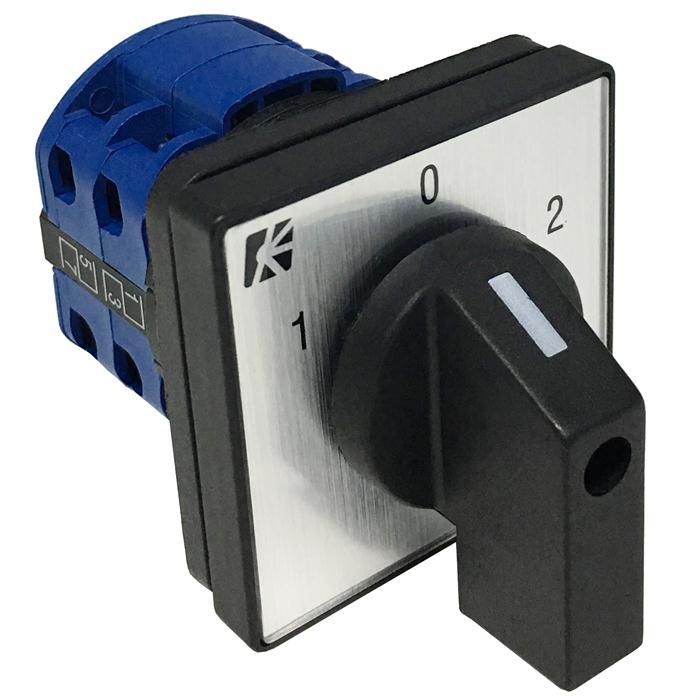

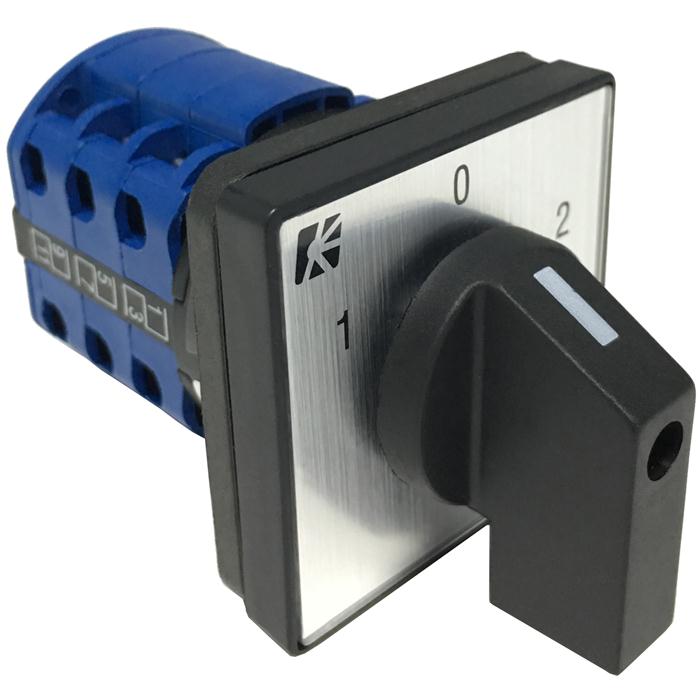

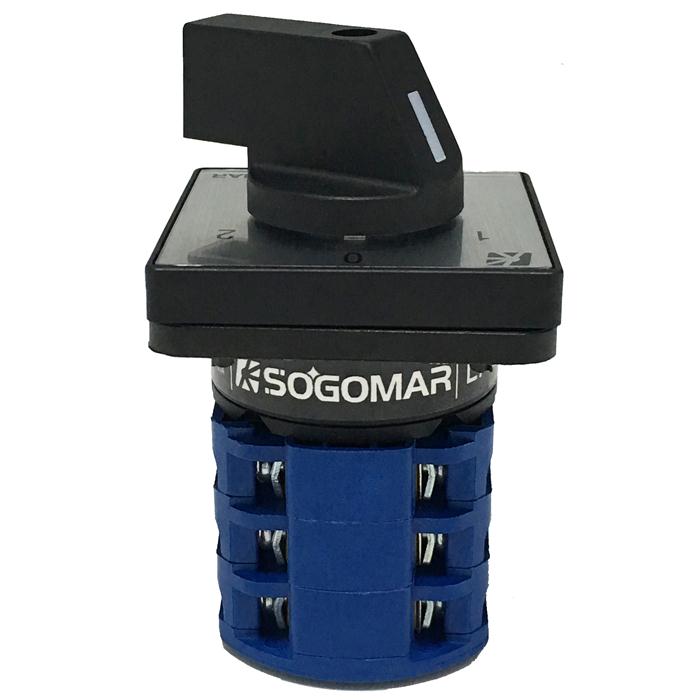

    SEA20
    SEA20
    Category:CAM SWITCH

    Brief description

    Current: 20A

    1. For the SEA series, we produce 10 current ratings: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A.

    2. Max voltage:690V

    3. As per IEC60947-3 and IEC60947-5-1

  • Brief description
  • Current: 20A

    1. For the SEA series, we produce 10 current ratings: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A.

    2. Max voltage:690V

    3. As per IEC60947-3 and IEC60947-5-1
    • Current: 20A






      Parameters:

      Description



      SEA10

      SEA20

      SEA25

      SEA32

      SEA63

      Rated insulation voltage Ui

      V

      400

      690

      690

      690

      690

      Rated thermal current Ith

      A

      10

      20

      25

      32

      63

      Power Frequency voltage-withstand 1min

      V

      2500

      2500

      2500

      2500

      2500

      AC working current



      A

      10

      20

      25

      32

      63

      AC15

      220V

      A

      2.5

      5

      8

      14

      16

      380V

      A

      1.5

      4

      5

      6

      7

      AC-3

      220V

      KW

      1.5

      3

      4

      5.5

      11

      380V

      KW

      2.2

      5.5

      7.5

      11

      18.5

      AC-4

      220V

      KW

      0.37

      0.55

      1.5

      2.5

      2.7

      380V

      KW

      0.55

      1.5

      3

      5.5

      5.5

      DC working currently



      No.of contact

      1 2 3 4

      DC-21 Resistive load Voltage(V)

      24 48 70 95

      A

      10

      20

      25

      32

      63

      48 95 140 190

      A

      6

      12

      20

      25

      110 220 330

      A

      0.7

      1

      1.5

      2

      220 440

      A

      0.3

      0.4

      0.5

      0.6

      440

      A

      0.2

      0.27

      0.3

      0.3

      DC-13 Inductive load Voltage(V)

      24 48 70 95

      A

      6

      12

      20

      25

      30 60 90 120

      A

      3

      5

      9

      12

      48 95 140

      A

      1

      2

      3

      3

      60 120

      A

      0.7

      1

      1.5

      1.5

      110

      A

      0.3

      0.4

      0.5

      0.5

      AC electrical endurance

      100000 times

      20

      20

      20

      20

      20

      DC electrical endurance

      100000 times

      5

      5

      5

      Mechanical endurance

      100000 times

      30

      30

      30

      30

      30



      Plate of size :

      Code

      Current

      Plate size(mm)

      Degree of rotation

      Max. layers

      SEA10

      10A

      30X30,

      30°45° 60° 90°

      8

      SEA20

      20A

      48X48, 48X60, 64X64, 64X80

      30°45° 60° 90°

      12

      SEA25

      25A

      48X48, 48X60, 64X64, 64X80

      30°45° 60° 90°

      12

      SEA32

      32A

      64X64, 64X80,88X88

      30°45° 60° 90°

      12

      SEA40

      40A

      64X64, 64X80,88X88

      30°45° 60° 90°

      12

      SEA63

      63A

      64X64, 64X80,88X88

      30°45° 60° 90°

      12

      SEA125

      125A

      88X88

      30°45° 60° 90°

      8

      SEA160

      160A

      88X88

      30°45° 60° 90°

      8

      SEA250

      250A

      88X88

      30°45° 60° 90°

      8

      SEA315

      315A

      130X130

      30°45° 60° 90°

      8




      Code of handle :



      Marks of face plates :
